Description

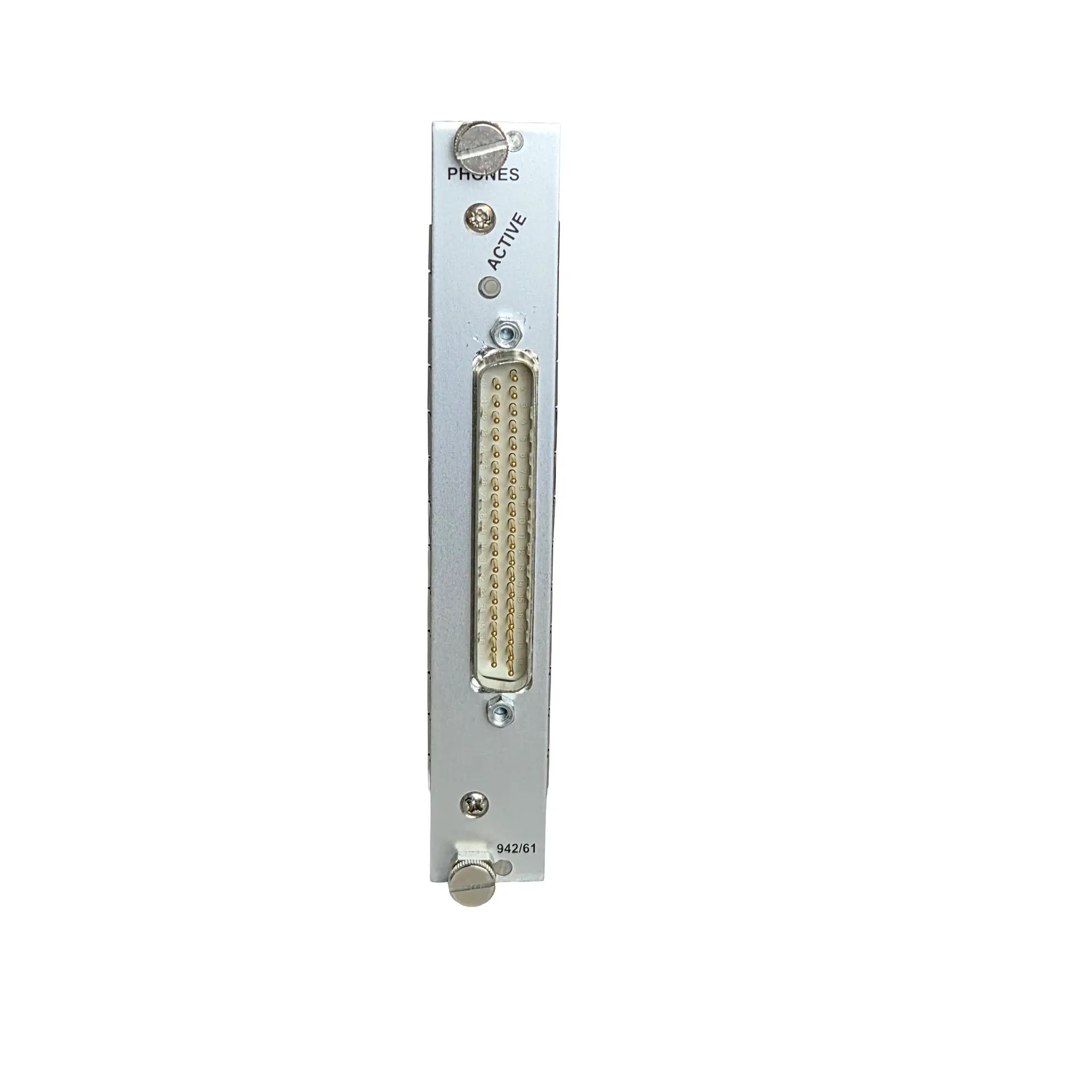

Add four stereo headphone monitoring outputs to your DALLIS frame with this refurbished Lawo 942/61 card. The card provides 4 x stereo headphone outputs with an electronically unbalanced design, and includes 4 VCA inputs for remote volume control.

Volume control method is selectable per output via onboard DIP-switches, either locally, by connecting linear-type potentiometers (1k–10k) to the onboard D-Sub or the optional 945/10 extender, or remotely, via a connected control system such as a mixing console.

Specification (per Lawo’s official DALLIS datasheet):

• 4 x stereo headphone outputs
• 4 x VCA inputs for volume control
• Connector: 37-pin male D-Sub
• Width: 4HP
• Wordlength: 24-bit
• Sampling rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
• Power consumption: 1.8W at 48kHz, 2.0W at 96kHz

Condition: Grade 3. This is a used unit that has been tested and confirmed in full working order. It has slight cosmetic imperfections consistent with prior use. This unit is covered by our quality guarantee. Refer to our condition grading and testing process for full details.

Compatibility: Fits standard Lawo DALLIS I/O frames used with mc² consoles and Nova73 routers. For remote VCA control via discrete connection, this card can be paired with the optional 945/10 extender (sold separately). Please get in touch if you’d like to confirm compatibility with your specific system before purchasing.

Have a question about this card, or looking for other Lawo DALLIS components? Contact our team and we’ll help you find what you need.
